BI-DIRECTIONAL STATIC LOAD TEST (BDSLT)

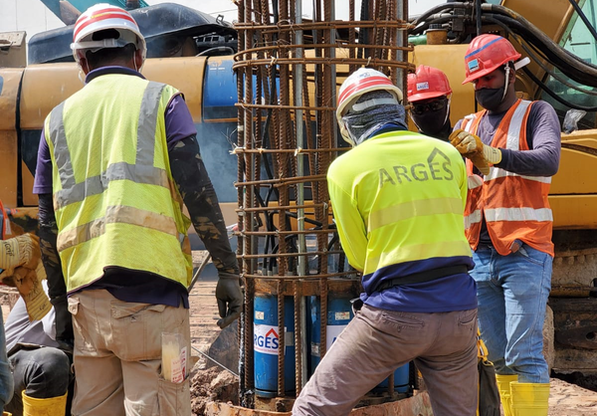

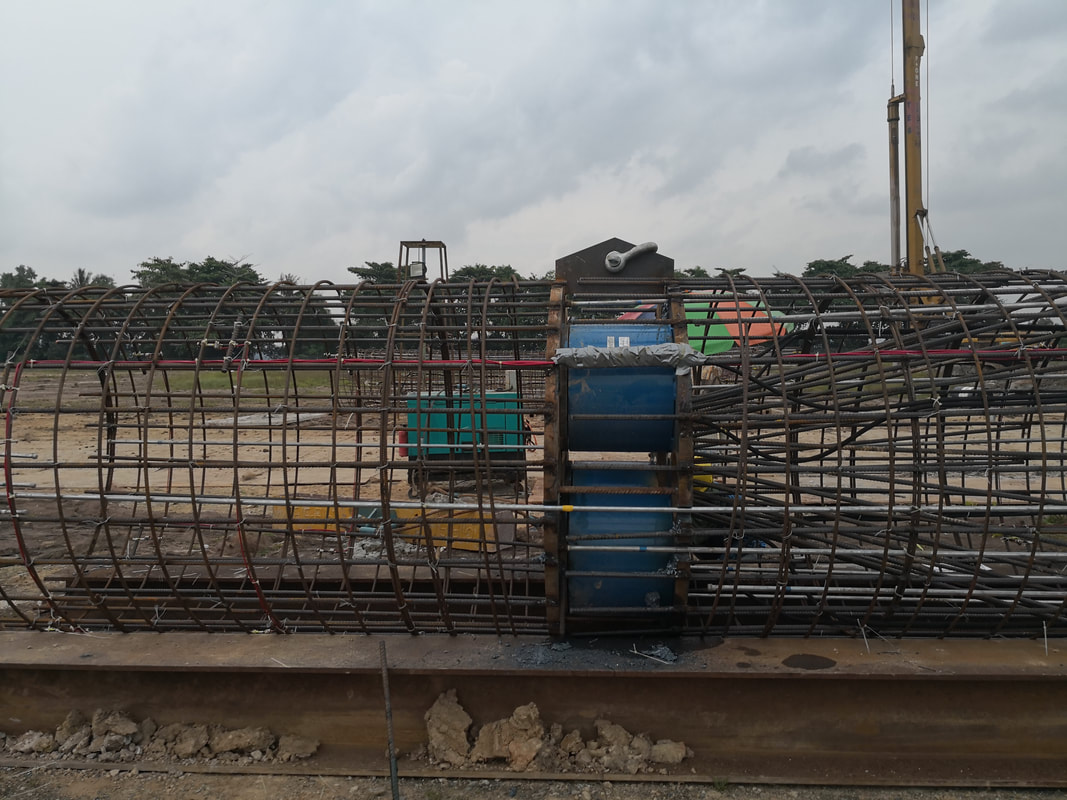

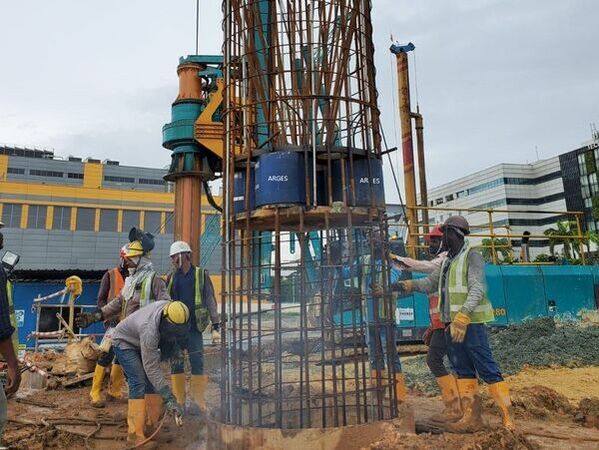

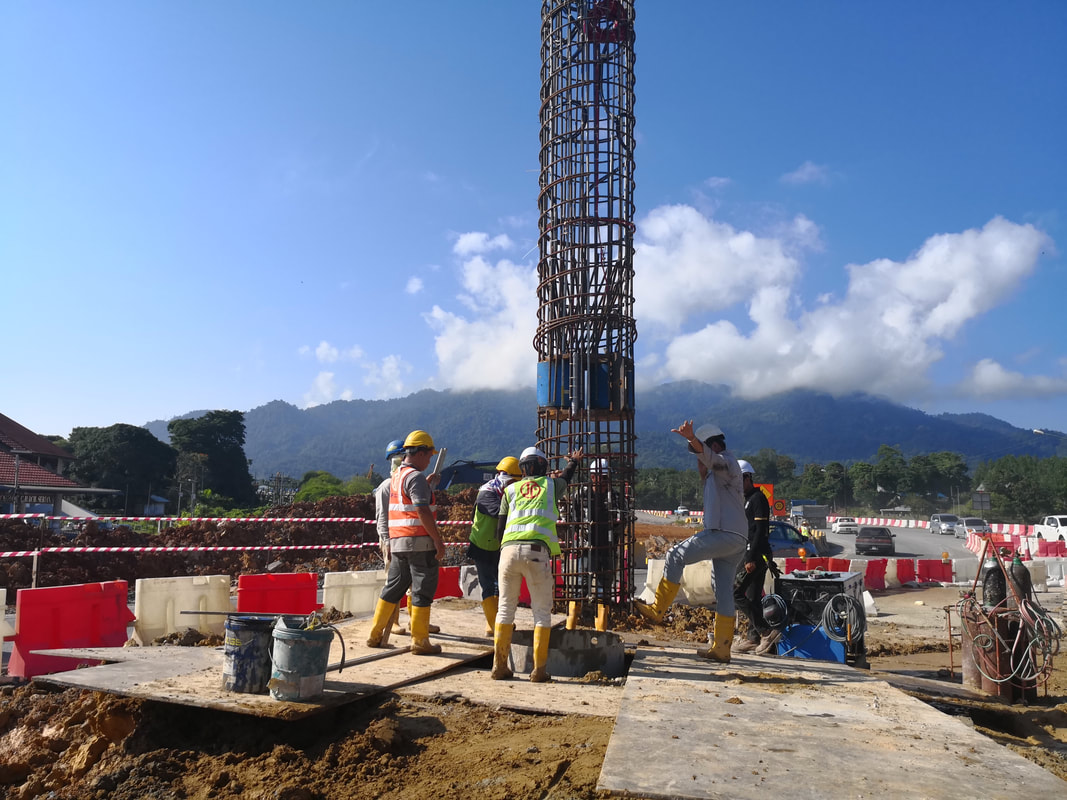

Bi-Directional Static Load Test or commonly known as “O-Cell Test” has became part of the regular foundation testing method around the world. It is a static load test where the hydraulic jack is embedded in the bored pile thus eliminate the needs of the reaction beams or reaction piles.
ARGES’s personnel has years of practical experience in executing the Bi-Directional Static Load Test. Our Engineers are well-trained in both field instrumentation as well as technical reporting. We are able to provide onsite training and assistance to our client to ensure smooth installation and testing of the pile.

Test Benefits:

High Test Load
Reduce Work Area
Test Rock Socket
Test Kingpost Pile
Improved Safety
One Day Test Setup
Embedded Strain Gauge for Load Distribution Analysis

JACK: Multiple sizes and capacities
STROKE: 160mm to 230mm
RATED PRESSURE: 10,000 psi

Reference Standards: ASTM D8169M, Singapore Standard TR 63-2018

TEST RESULT

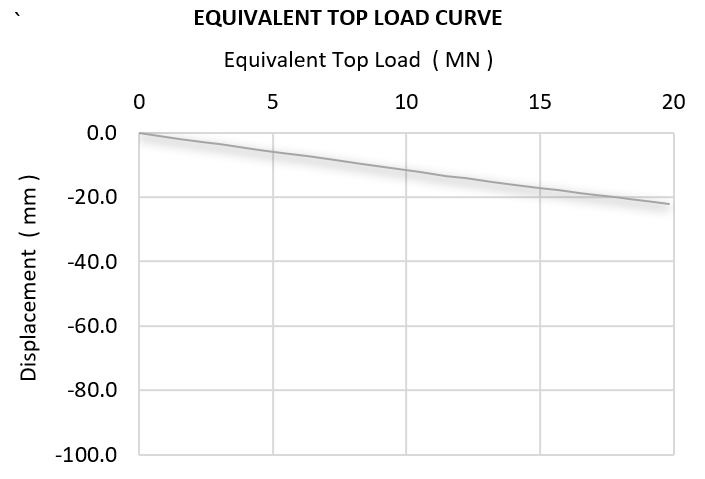

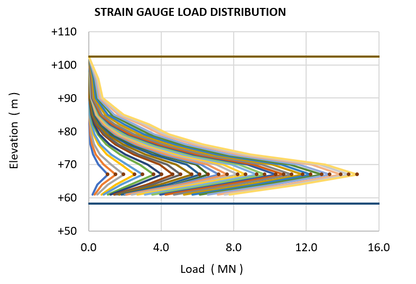

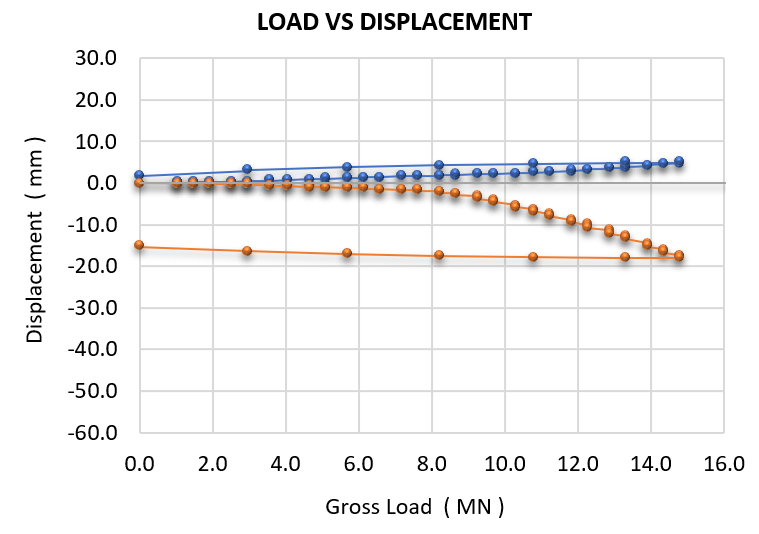

Bi-Directional Load Test can be performed by using Procedure A – Quick Test or Procedure B – Extended Test (Optional) as per the latest ASTM standard D8169 – Standard Test Methods for Deep Foundations Under Bi-Directional Static Axial Compressive Load. During the test, the load displacement curve and strain gauge load distribution curve will be shown on the test laptop in real time. Data analysis and reporting work will be carried out by ARGES Engineer by adopting industrial recognized analysis method.
